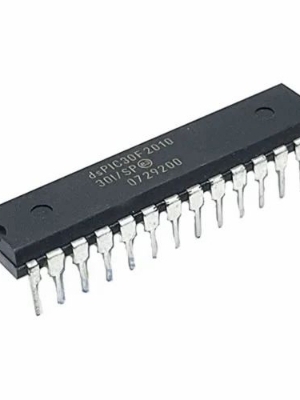

MICROCHIP DSPIC30F2010

Name: MICROCHIP DSPIC30F2010
Brand: MISONIC INFOTECH
Price: 300.0 INR
Availability: InStock

Price 300.0 INR/ Piece

Get a Price/Quote

MOQ : 100 Pieces

MICROCHIP DSPIC30F2010 Specification

Components
Modified Harvard Architecture RISC core, 17x17-bit single-cycle hardware multiplier, dual 40-bit accumulators, 40-stage barrel shifter, and highly integrated analog/timer peripherals.

Power Supply
2.5V to 5.5V

Processor Speed
Up to 30 MIPS (Million Instructions Per Second) at max operating conditions.

Product Type
16-Bit Digital Signal Controller (DSC) / Microcontroller IC

Application
Combines the hardware control attributes of a standard microcontroller unit (MCU) with the analytical computation algorithms of a Digital Signal Processor (DSP).

Rated Voltage
3.3V to 5.5V Volt (V)

Current Rating
High-current sink/source I/O pins capable of delivering up to 25 mA / 25 mA directly.

Frequency
40 MHz Megahertz (MHZ)

MICROCHIP DSPIC30F2010 About

The dsPIC30F2010 is a 28-pin, 16-bit Digital Signal Controller (DSC) from Microchip Technology. It runs at up to 30 MIPS, features 12 KB of Flash program memory, 512 bytes of RAM, 1024 bytes of EEPROM, and includes specialized motor control PWM and Quadrature Encoder Interface (QEI) peripherals.

Outstanding Processing Power

Equipped with a 40 MHz clock and the ability to execute up to 30 MIPS, the dsPIC30F2010 handles complex control and signal processing algorithms efficiently, providing robust performance for industrial and automotive systems.

Flexible Power and I/O Capabilities

Functioning reliably within supply voltages of 2.5V to 5.5V, this microcontroller accommodates a wide range of applications. Its high-current sink/source I/O pins supporting 25 mA drive powerful external components directly, simplifying circuit design.

Rich On-Chip Features

With a modified Harvard Architecture, single-cycle hardware multiplier, dual accumulators, and a 40-stage barrel shifter, the dsPIC30F2010 streamlines both control-oriented tasks and DSP operations, reducing the need for external components.

FAQ's of MICROCHIP DSPIC30F2010:

Q: How does the MICROCHIP dsPIC30F2010 combine MCU and DSP functionality?

A: The dsPIC30F2010 integrates the control capabilities of a traditional microcontroller with the computational power of a digital signal processor. Its hardware multiplier, dual accumulators, and dedicated signal processing instructions make it effective for both control and real-time analytical tasks.

Q: What applications benefit most from using the dsPIC30F2010?

A: Applications that require both robust control and precise signal processing, such as motor control, power conversion, automotive systems, and industrial automation, greatly benefit from the dsPIC30F2010.

Q: When should I use high-current sink/source I/O pins on this device?

A: You should use the 25 mA high-current sink/source I/O pins when directly driving LEDs, relays, or external transistors, eliminating the need for separate driver circuits in many cases.

Q: Where can I source the dsPIC30F2010 for my project?

A: You can obtain the dsPIC30F2010 from authorized electronics distributors, manufacturers, or suppliers specializing in microcontrollers and embedded systems components.

Q: What process does the dsPIC30F2010 use for high-speed calculations?

A: It employs a modified Harvard RISC architecture, enabling parallel instruction and data access, single-cycle hardware multiplication, dual 40-bit accumulators, and a barrel shifter to accelerate arithmetic operations.

Q: How does the power supply range affect device flexibility?

A: The wide supply voltage range (2.5V to 5.5V) allows the dsPIC30F2010 to be used in a variety of systems with differing voltage requirements, enhancing its integration flexibility.
