Mosfet Transistor

• Application

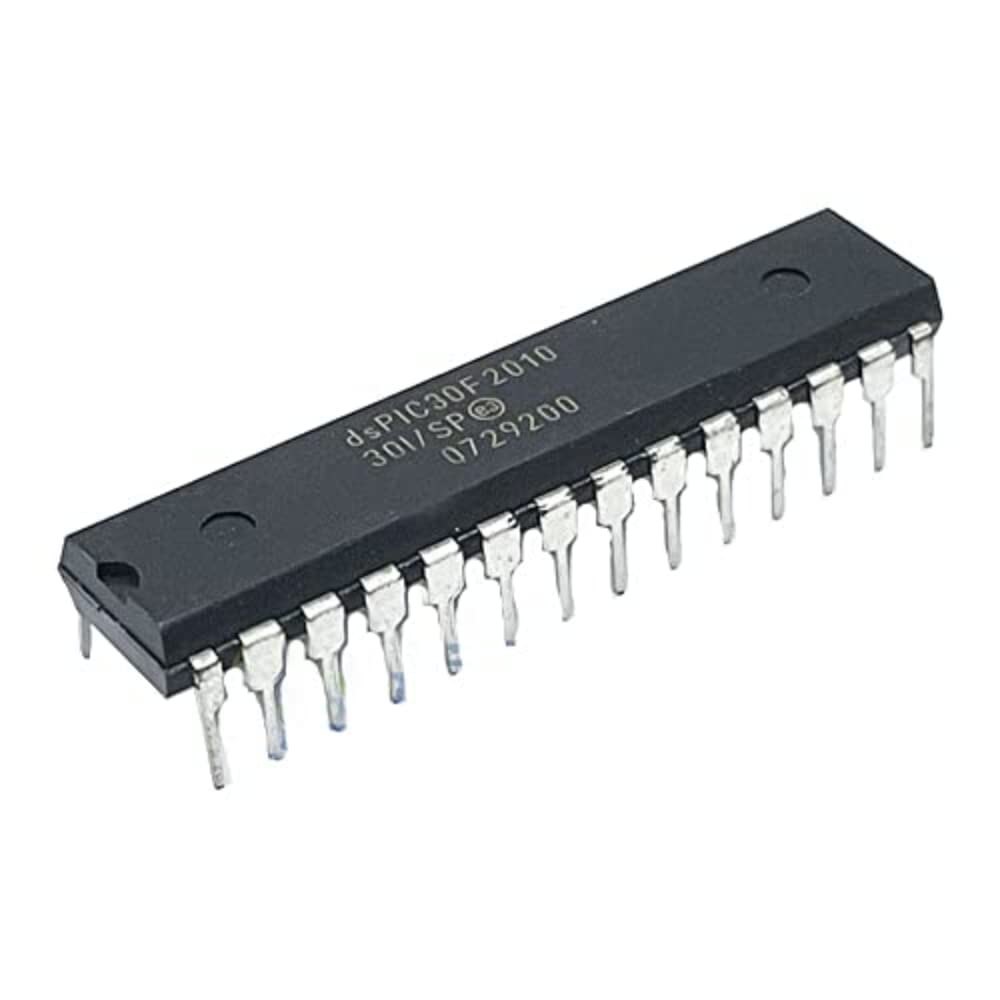

• Combines the hardware control attributes of a standard microcontroller unit (MCU) with the analytical computation algorithms of a Digital Signal Processor (DSP).

• Components
• Modified Harvard Architecture RISC core, 17x17-bit single-cycle hardware multiplier, dual 40-bit accumulators, 40-stage barrel shifter, and highly integrated analog/timer peripherals.

• Current Rating
• High-current sink/source I/O pins capable of delivering up to 25 mA / 25 mA directly.

• Frequency
• 40 MHz Megahertz (MHZ)

• Power Supply
• 2.5V to 5.5V

• Processor Speed
• Up to 30 MIPS (Million Instructions Per Second) at max operating conditions.

• Product Type
• 16-Bit Digital Signal Controller (DSC) / Microcontroller IC

• Rated Voltage
• 3.3V to 5.5V Volt (V)

• Application
• Power supplies, automotive circuits, low voltage high current applications

• Capacity
• Current handling up to 110A

• Color
• Black/Silver

• Components
• Silicon, metal leads, molded case

• Current Rating
• 110A continuous

• Dimension (L*W*H)
• 10.15 mm x 4.6 mm x 15.6 mm (approx., TO-220 body)

• Features
• Low on-state resistance, High current capability, Fast switching

• Frequency
• High-speed switching, up to hundreds of kHz

• Function
• N-channel MOSFET, switching and amplification

• IP Rating
• Not rated (component level)

• Input
• Gate voltage drive (logic level)

• Interface
• 3-pin (Gate, Drain, Source)

• Operating Temperature
• -55C to +175C

• Output
• Drain current, source connection

• Power Source
• Integrates into electronic circuit

• Power Supply
• DC

• Product Type
• Transistor (MOSFET)

• Rated Voltage
• 55V

• Response Time
• Very fast switching (nanoseconds)

• Size
• TO-220 package

• Supply Voltage
• Up to 55V

• Thermal Conductivity
• Junction-to-case (RthJC): 0.75C/W

• Thickness
• Approx 1 mm (body)

• Usage
• Power management, motor control, load switching

• Weight
• Approx 2-4 grams

• Application
• Motor controllers, power supplies, switching regulators

• Capacity
• Not applicable (semiconductor device)

• Color
• Black/Silver

• Components
• Semiconductor material, TO-220 package, three leads

• Current Rating
• 33A (continuous drain current)

• Dimension (L*W*H)
• ~10mm x 4.5mm x 15.8mm (excluding leads)

• Features
• Low RDS(on), fast switching, high current handling

• Frequency
• High speed switching (Not specifically rated in MHz)

• Function
• switch or control high current and high voltage loads

• IP Rating
• Not rated for ingress protection (open component)

• Input
• Voltage-controlled (Gate)

• Interface
• Three pins - Gate, Drain, Source

• Operating Temperature
• -55C to +175C (Tj, maximum junction temperature)

• Output
• Current through Drain-Source

• Power Source
• Integrated into circuit, externally powered

• Power Supply
• DC

• Product Type
• N-channel MOSFET

• Rated Voltage
• 100V max Volt (V)

• Response Time
• Typical rise time: ~48ns

• Size
• Standard TO-220 size

• Supply Voltage
• Max Vds = 100V

• Thermal Conductivity
• RJC = 1.0 C/W

• Thickness
• Typical TO-220 package

• Weight
• ~2g (approximate, per unit)
